The research team at Fraunhofer ISE developed a measurement station for the PV-Live project with pyranometers recording the global horizontal irradiance and temperature. Additionally, three silicon reference cells with different orientations measure irradiance on tilted surfaces. These data provide a basis for simulated PV power values.

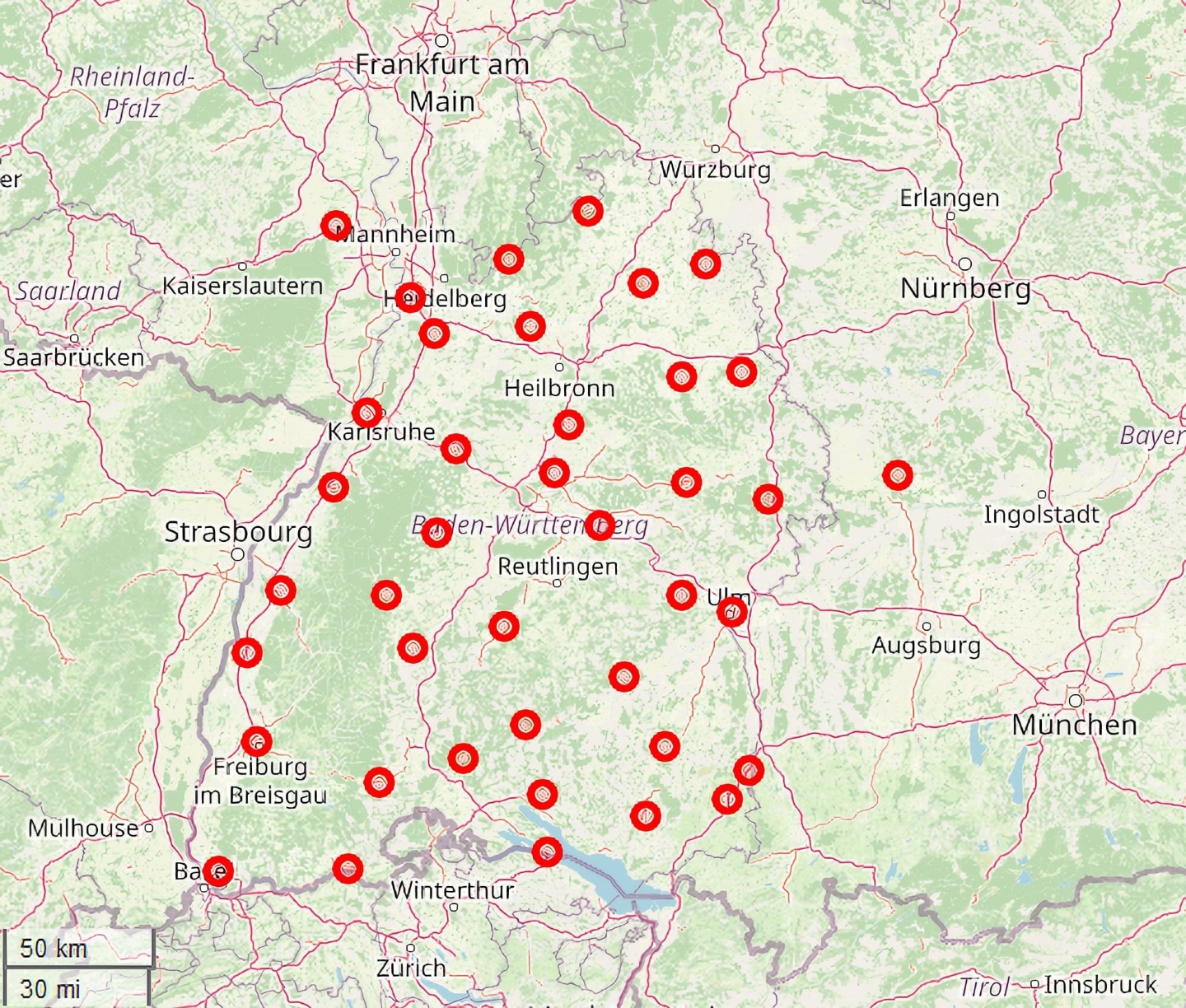

By March 2019, a total of 40 measurement stations, distanced at 15 and 35 kilometers, had been installed in the control area of the transmission system operator TransnetBW in Baden-Württemberg. The measurement stations are located at project partners’ and company sites as well as municipal utilities in cities throughout Baden-Württemberg.
The irradiance data are sent from the measurement stations in real-time every minute and then undergo quality control at Fraunhofer ISE, where they are also converted into PV power and made available to TransnetBW. In combination with satellite-based irradiance values, the recorded data allows the creation of a high-resolution temporal and spatial image of the current PV generation and the resulting grid feed-in.
Dr. Florian Dinger, advisor for algorithms and prognose sat TransnetBW, said, “The novel concept for the measurement stations and data acquisition was created in close cooperation by Fraunhofer ISE and TransnetBW. We believe that cooperation between industry, research, and society is essential for the success of the energy transition. That’s why we’ve decided to make this new high-resolution data publicly available to researchers in the field of solar energy meteorology.”
The data set, which comprises minute-by-minute measurement data since September 2020, has now been published. Before being published, the irradiance and temperature data undergo a quality-control check using algorithms specially designed for this data. The automatic real-time data processing and quality control were set up together with Mondas GmbH, a spin-off of Fraunhofer ISE.
Dr. Elke Lorenz, Group Manager Energy Meteorology at Fraunhofer ISE, states, “For the first time, the solar energy meteorology research community has access to a high-resolution temporal data set for solar irradiance, which covers all of Baden-Württemberg. This makes it possible to investigate the spatial and temporal fluctuations and balancing effects, which are very important for the feed-in of solar power to the power grid.”
Another unique feature of PV-Live is that solar irradiance is measured simultaneously using sensors with different orientations. While meteorological monitoring networks typically conduct horizontal measurements, these tilted sensors record solar irradiance on the same plane as the solar modules in real life, as they are installed on rooftops or as part of free-standing photovoltaic plants. This is for example useful for the development and validation of models for irradiance at the level of the solar module.
